Vue Vision Software
Apera AI's Vue robotic vision software gives Universal Robots human-like sight and perception, helping them complete difficult tasks like bin picking, assembly, and packaging. Powered by AI, Vue will help make your UR-based work cells faster, smarter and more productive. Vue software is based on the latest AI and machine learning technologies, which allow for faster and smarter path planning and object recognition by your robots.
Manufacturer:Apera AI
Description

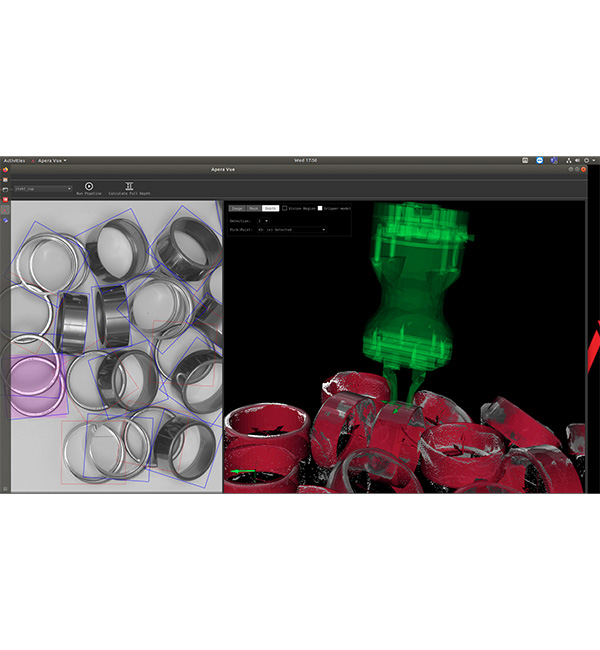

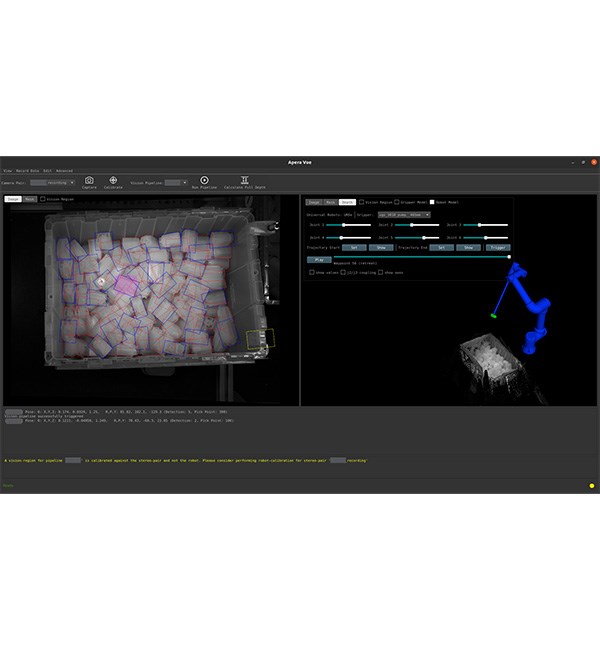

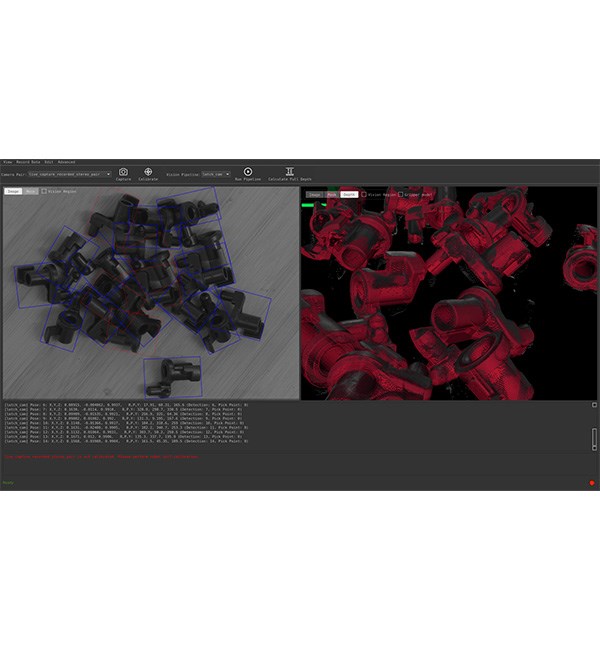

Apera Vue works by capturing a scene using 2D cameras. Those images are run through our proprietary AI technology. The images are combined into a 3D understanding of the scene, where single objects are identified as pickable.
The robot is given pose estimation and path planning information through the Apera Vue software embedded in its controller. A safe path that avoids collisions is planned. Because the object is trained into an AI neural network using CAD drawings or 3D scans, these steps can happen very quickly. The object is picked and placed with precise and accurate results.

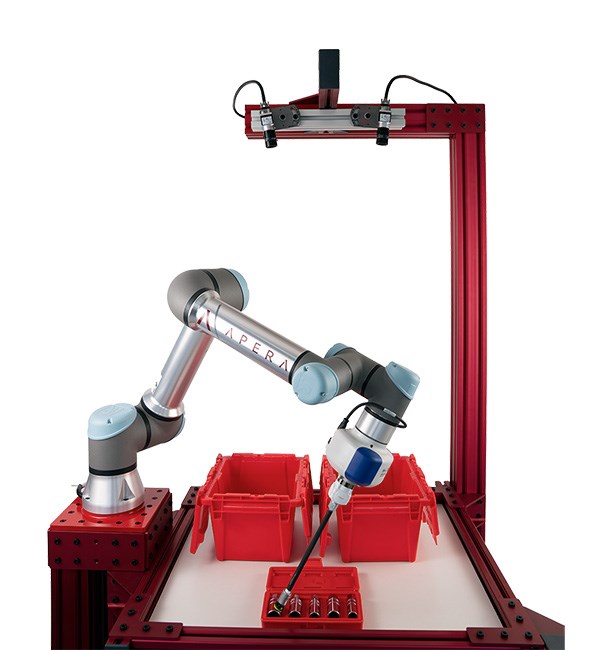

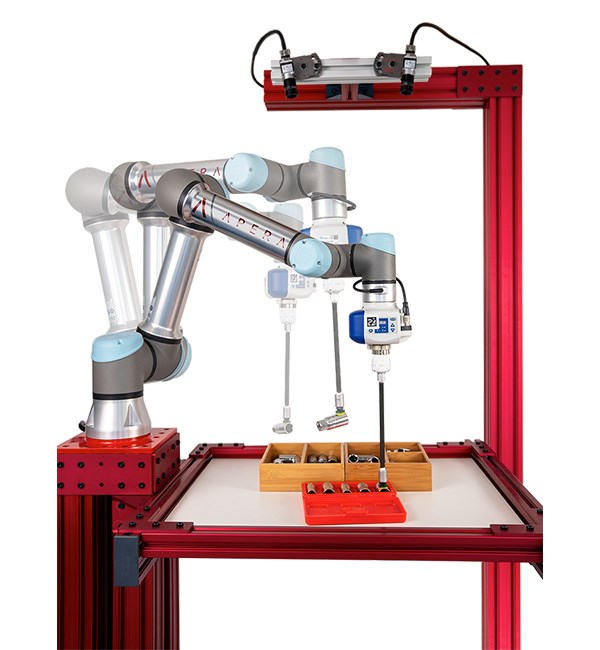

Setup for a workcell using Apera Vue software is simple, since only 2D cameras and an industrial computer are needed. The cameras are bracketed above the scene, while the industrial PC and screen is placed nearby the workcell.
