Precision Gripper / Caliper NSR-PG-10-20-URe

Precision Gripper / Caliper NSR-PG-10-20-URe

THE FIRST GRIPPER/CALIPER FOR AUTOMATED SMALL PART MEASUREMENTNow you can automate small part measurement using your UR cobot! The NSR-PG-10-20-URe Precision Gripper/Caliper replaces manual digital calipers. Automate inspection and gauging, make in-process decisions such as part sorting or pass/fail. Log the data to a PC for statistical process control. The NSR-PG Gripper/Caliper is included in the Q-Span Workstation Application Kit for measurement inspection.

Manufacturer:New Scale Robotics

Website

Request information Add to My Solutions

Overview Technical specifications Features Compatibility

Description

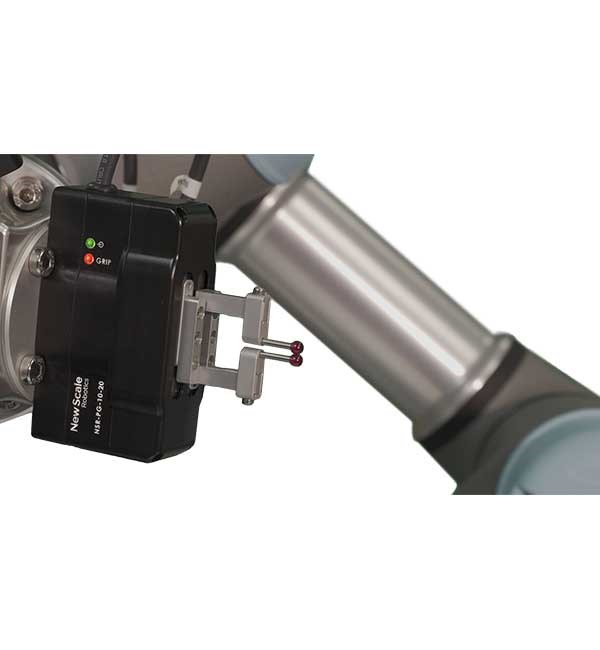

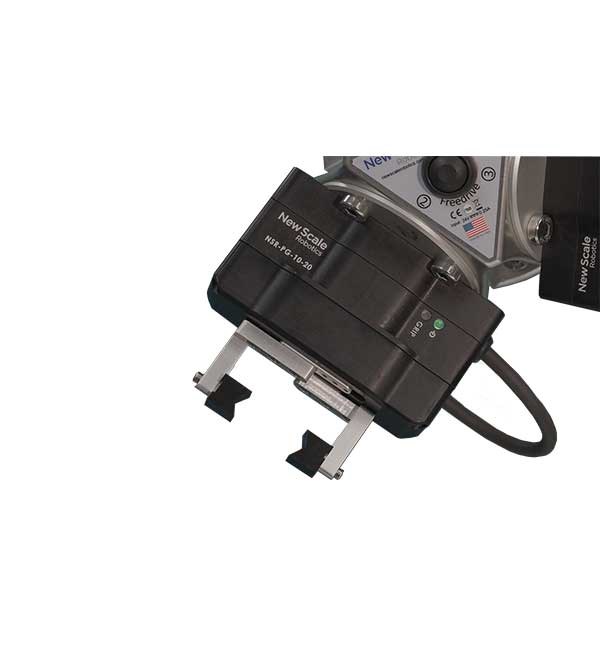

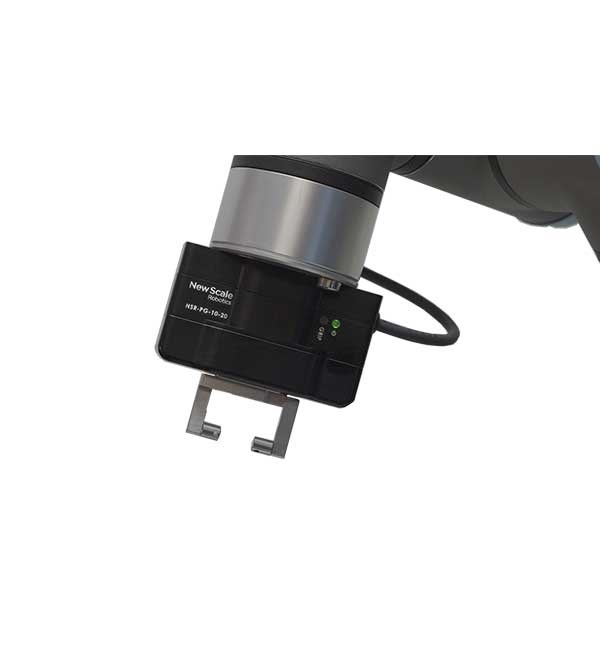

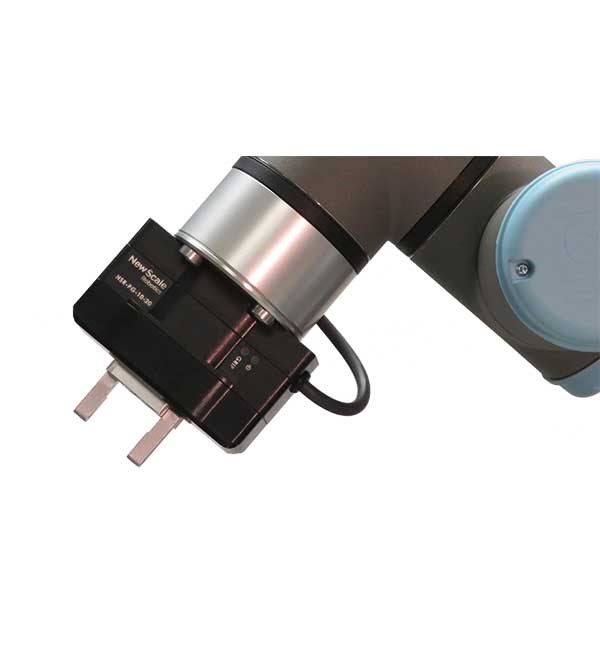

Easily mount the NSR-PG Gripper/Caliper to the UR robot tool flange using four screws and a single cable.
OR mount up to three NSR-PG Gripper/Calipers to a single UR robot using New Scale's NSR-MTM Multi-tool mount - see separate listing

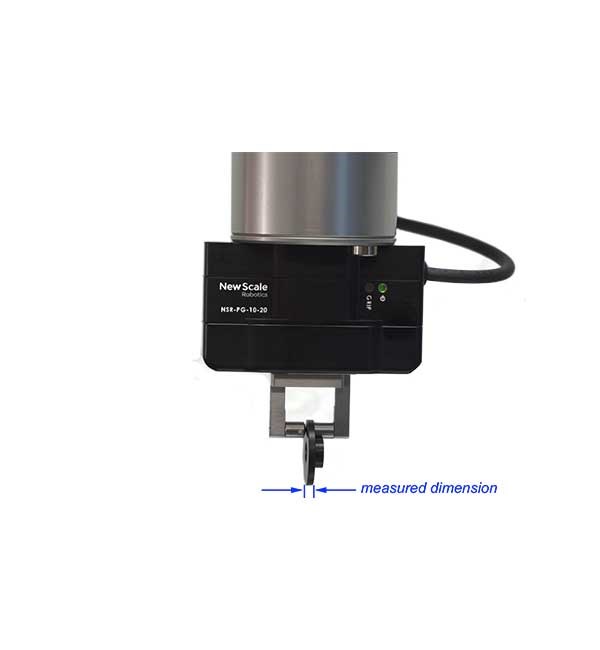

Add metrology fingertips appropriate to your workpiece. Use the NSR-PG Gripper/Calipers to PICK up small parts, MEASURE multiple features on each part, and RECORD the measured data to a PC. Use the data to automate in-process decisions: PLACE parts into pass/fail bins or sort them by size. You can also detect process drift and alert machine operators to check their systems.

Q-SPAN WORKSTATION APPLICATION KIT
The NSR-PG Gripper/Caliper is included in the Q-Span Workstation Application Kit for measurement inspection.
