FXCB Robot Set

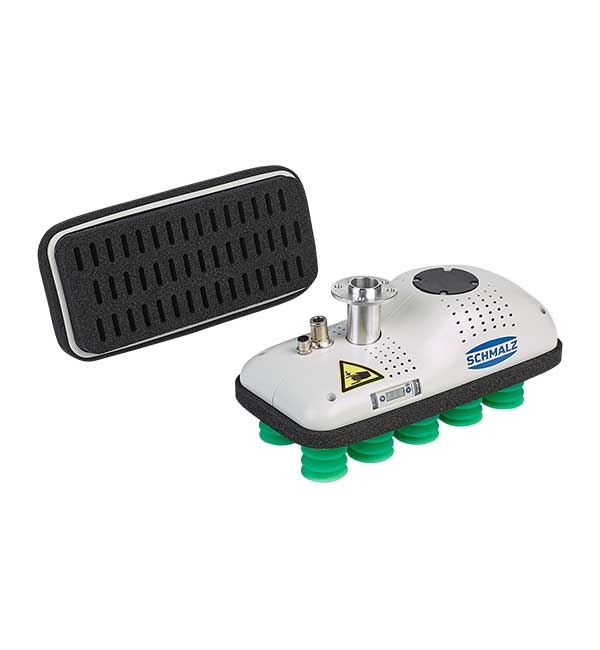

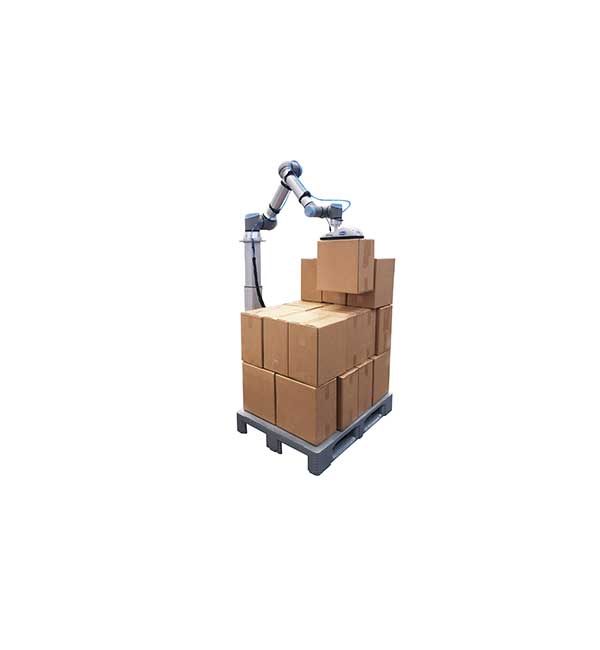

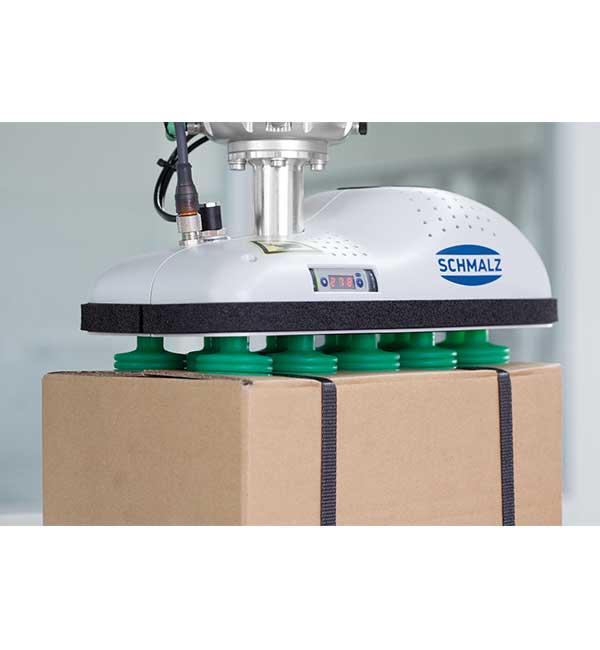

The FXCB robot set is ideal for handling workpieces in the field of intralogistics using pneumatic vacuum generation.The set contains all the components required to assemble a complete gripper, thus enabling easy assembly and commissioning. The sealing element of the gripper consists of either a sealing foam or suction cups. Suction cups are perfect for use when handling uneven workpieces.Thanks to the URCap, the gripper can be perfectly adapted to your individual needs.

Manufacturer:Schmalz

Website

Request information Add to My Solutions

Overview Technical specifications Features Compatibility

Description

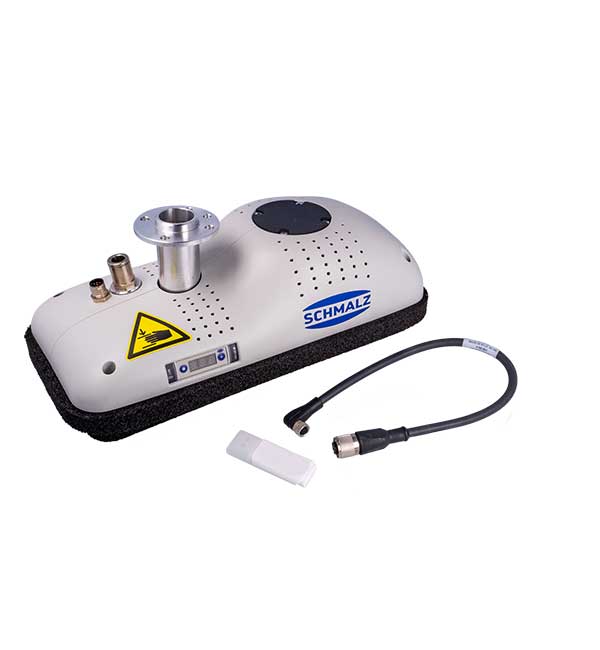

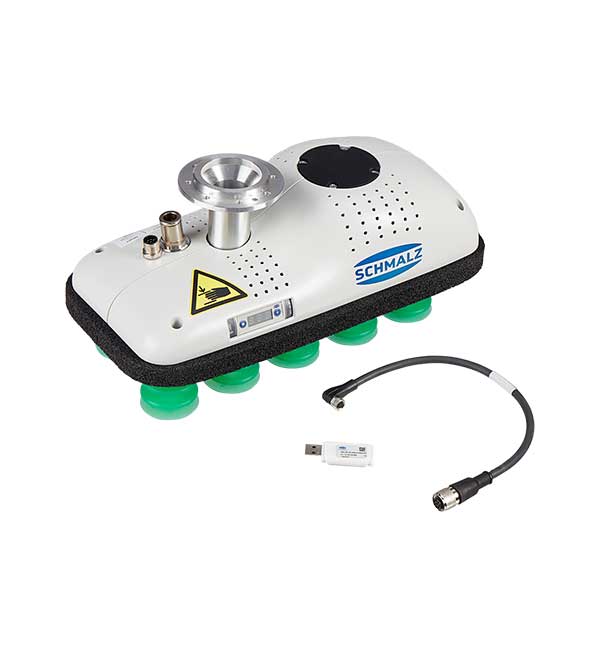

The set includes a Vacuum Area Gripper FXCB, a connection cable specially designed for your Universal Robot and the URCap for effortless installation. Just mount the gripper with the help of the included screws to the wrist of your collaborative robot.

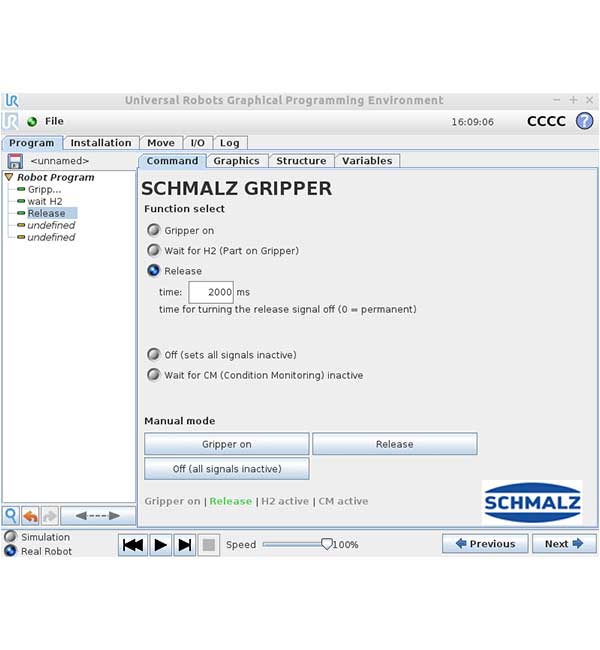

Then connect the gripper with the connection cable to the first wrist of the robot. Lastly use a vacuum hose (available as an accessory) to connect the gripper to your compressed air supply. With the help of the included URCap you now can easily set-up the gripper to your custom needs.
