PROFIsafe for e-Series

SAFETY ALERT:

If you are using PROFIsafe, with the 3PE Teach Pendant, update to software version 5.18.1 or higher. Currently all e-Series robots ship with software 5.19 or higher.

Manufacturer:Universal Robots

Website

Request information Add to My Solutions

Overview Technical specifications Features Downloads Compatibility

Description

SAFETY ALERT: If you are using PROFIsafe, with the 3PE Teach Pendant, update to software version 5.18.1 or higher. Currently all e-Series robots ship with software 5.19 or higher.

For more information, see Safety Notice and Release Note.

Currently all e-Series robots ship with software 5.19 or higher.

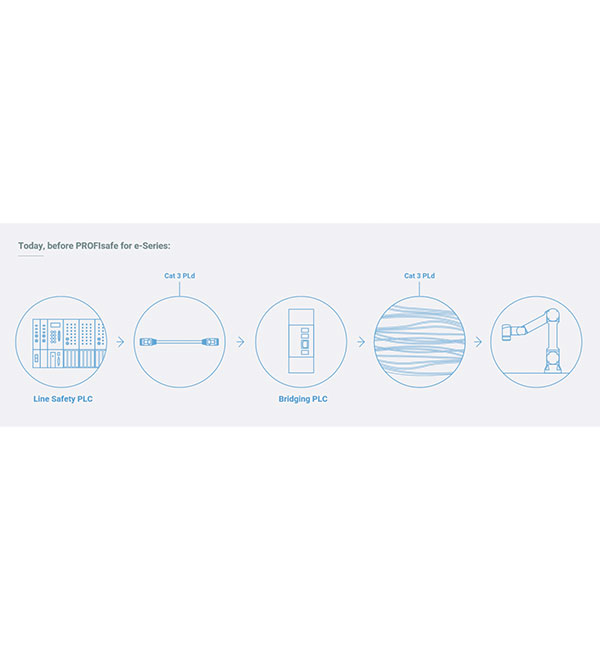

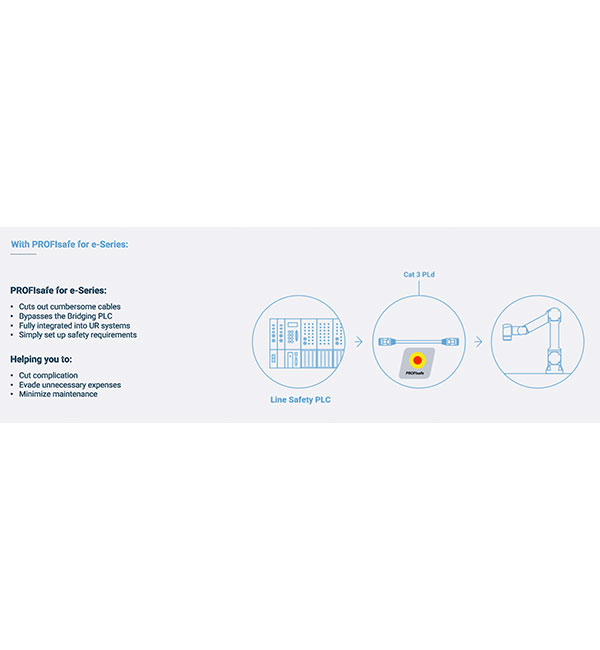

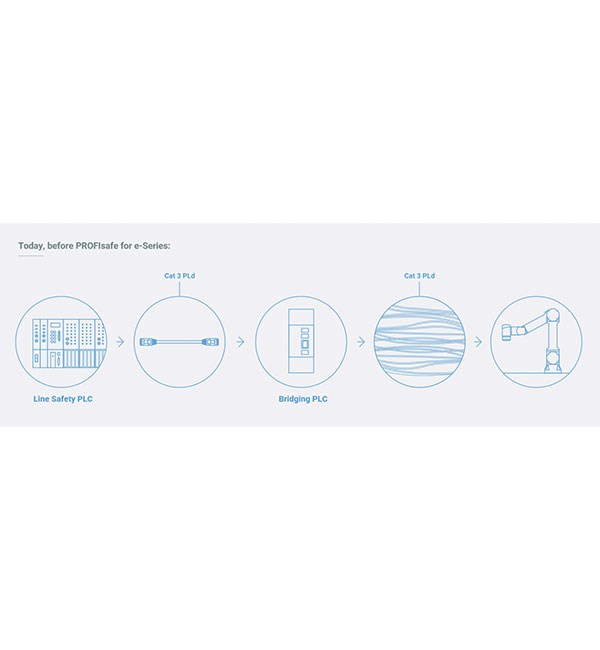

PROFIsafe is an open-standard, industrial ethernet communications protocol. PROFIsafe adds an additional layer to PROFInet to allow functional safety communications over a single ethernet cable. PROFIsafe for e-Series eliminates the need for a bridging PLC or additional I/O modules, creating a cost savings, and simplification of wiring and programming across the entire workcell.

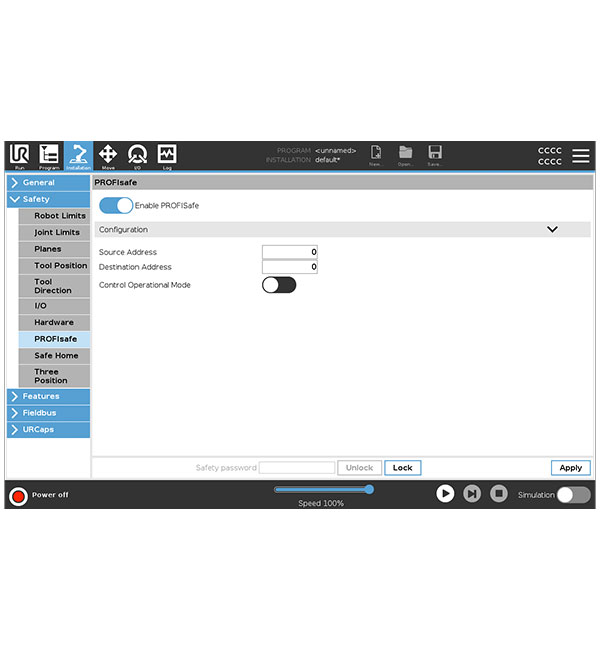

PROFIsafe communications are fully integrated into Universal Robots software. Setup is simple and fast – connect an ethernet cable from the robot control box to a safety PLC or other PROFIsafe controller and set the addresses in the PolyScope Installation menu. Remaining configuration is done directly in your PLC software.
